Product introduction

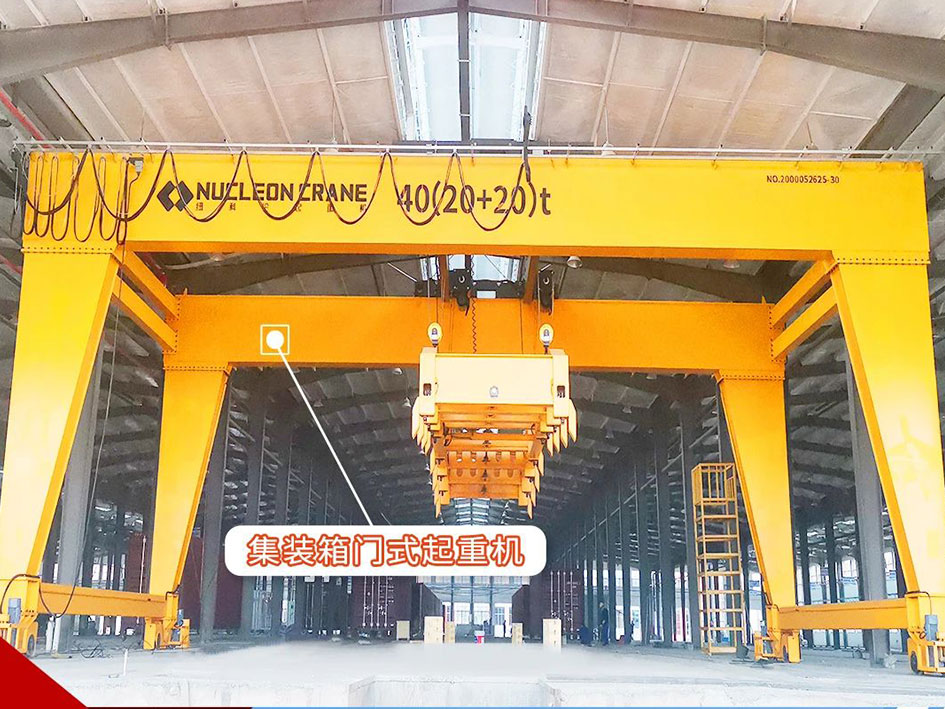

Introduction: The rail-mounted container gantry crane is designed for the handling, loading/unloading of various containers or railway wide-boxes at container yards of ports, docks, railways, logistics, etc.
Independent design
Modular design
Intelligent
Compact design
environment protection
Safety design
Product Details:
The rail-mounted container gantry crane is supported by multiple sets of steel wheels on the track, powered by electricity, and composed of a crane traveling mechanism, a hoisting trolley mechanism, a gantry frame, a power system, and specialized container lifting equipment. Our company specializes in providing up-rotary (hoisting trolley rotation) rail-mounted container gantry cranes, down-rotary (spreader rotation) rail-mounted container gantry cranes, with or without cantilever, and railway-specific rail-mounted container gantry cranes. Our products can adapt to various types and categories of general or specialized container lifting spreaders, meeting the lifting requirements of standard or specialized containers in different working conditions.
Technology Features:
(1) Our products are designed, manufactured, and inspected in accordance with the latest international and China’s standards, such as FEM, DIN, IEC, AWS, and GB. They are characterized by diverse functions, high efficiency, stability, reliability, wide operating range, and easy maintenance and upkeep.
(2) The gantry cranes are equipped with comprehensive safety indicators and overload protection devices, ensuring maximum safety for operators and equipment. The electrical drive system utilizes unique technologies such as fully digital AC frequency conversion and PLC control, providing flexible and precise control.
(3)Our products come with a standard bi-directional flexible resistance anti-sway system, and can be optionally equipped with a multifunctional frequency conversion anti-sway micro-motion system and an electronic anti-sway system. These systems effectively prevent swaying, are easy to maintain, and improve the anti-sway performance of the container.
(4)The CMS intelligent service management system monitors the real-time operation of equipment.
(5) Our products utilize vector frequency conversion, energy feedback, and torque balancing control technologies, which are energy-saving and environmentally friendly, as well as convenient and efficient.
(6) Our container gantry cranes feature automated fault detection and real-time data display technologies, ensuring safety and reliability.
(7) The gantry cranes offer multiple operation modes, including manual, semi-automatic, automatic, and remote control, and are characterized by advanced technology and stable performance.
(8) It has core technologies such as automatic positioning, intelligent container-to-container transfer, intelligent trajectory control, and intelligent safety protection.
(9) The products are equipped with various safety measures such as high-wind alarms and dynamic safety scanning.
Ensure that the crane moves slowly and accurately as it approaches its destination. This function can be applied to hoisting mechanism, trolley and crab. Inching movement can be set as required.
Dead slow function can ensure the stability of the control system and slow, accurate movement when the crane is moving and loading. This function can be applied to hoisting mechanism, trolley and crab.
"Zero speed hover" function automatically starts to prevent slip hook when the control system detects the slip hook trend (the motor does not rotate when the brake is opened).
Our cranes are all equipped with functions of upper pre-limit, upper limit, top impact-proof limit impact-proof of the crane, which meets various needs of customers for products.
Crane can automatically limit the sway of the loader in the process of handling, realizing faster handling and more accurate positioning, and to be stable during the handling process.
Cranes are equipped with hazardous area restriction function, which can reduce the dangerous situation during loader movement, and prevent the damage of the loader, crane and surrounding area facilities.
Our cranes can add sub-low speed and sub-high speed function regulation except for low speed and high speed, which is practical and efficient.
The crane can monitor and control position difference of multiple hooks to make the hooks run synchronously at the same speed, ensuring the efficiency and quality of the crane.
When multiple cranes lift a loader at the same time, the position difference of multiple cranes can be monitored and controlled to make the crane operating mechanism run synchronously at the same speed.
A wireless module can be added to the crane to connect to the Crane Industrial Internet Platform, realizing the full life cycle management of the crane.
